Description
The Dynacord U-Series mixer and power amplifiers are high performance, professional public address units with modern state of the art features. They are easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on the radio. The amplifier is also surprisingly affordable, without sacrificing features such as ducking, priority and flexibility.
New 1/2 rack design means they are a compact solution. The range includes 30w, 60w, 120w and 240w mixer amps and a 120w and 240w power amps.

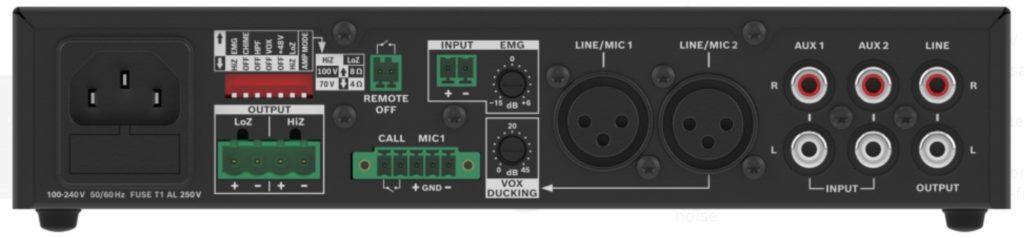

MIXER AMP Features:
▪ Versatile inputs: 4 inputs – 2 aux and 2 mic/ line options with phantom power support – can be used with PLE-1CS paging mic
▪ Full power output supporting 4Ω, 8Ω, 70 V and 100 V
▪ EMG override input, ensuring critical messages are heard clearly
▪ Contact override for call station with 2-tone chime for attention-grabbing alerts
▪ Selectable 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
▪ Space-saving compact ½ rack design, providing versatility without compromising performance
▪ Voice-over ducking that automatically adjusts background music volume for clear voice communication
▪ Remote power OFF (Stand by), enhancing energy efficiency
Functions
Advanced amplification technology Incorporates class-D amplification topology for superior energy efficiency, product quality, and reliability compared to traditional linear power supply and class-AB amplification.
Compact form factor Half rack, 1U enclosure ensures space-saving installation without compromising performance.
Full power at low and high impedance Supports 70V, 100V, 4Ω, and 8Ω speaker systems, offering versatility in system design.
Phantom power Facilitates microphone operation with power supplied to both microphone inputs.
VOX Ducking Prioritizes voice input, enhancing clarity during announcements or speeches.
Remote power Enables remote power ON/OFF functionality via contact closure, enhancing operational convenience.
Bass and treble adjustment Allows fine-tuning of audio output with dedicated bass and treble adjustment controls.
High-pass filter Available 120 Hz high-pass filters to tailor audio output according to application requirements.
Flexible mounting options Offers versatile mounting possibilities including rack mount, side-by-side rack mount, table-top, or undertable mounting, facilitated by included brackets and accessories.
Emergency input Features 100 V and Line In emergency input with level selection, ensuring critical messages are delivered clearly.
Protection Equipped with overload and short circuit protection, along with a limiter to safeguard both the amplifier and loudspeaker against accidental overdriving. A temperature-controlled fan ensures optimal cooling without generating acoustic noise at lower output levels.

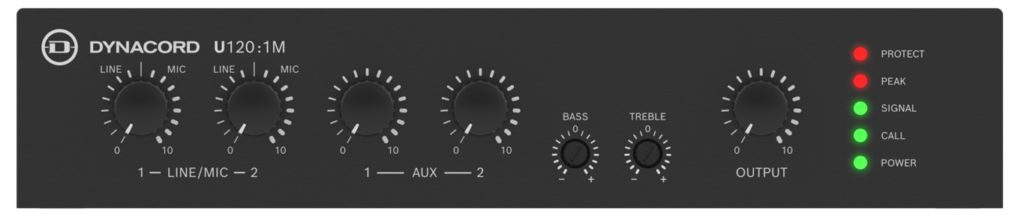

Accessible front controls Conveniently adjust output gain, input gain per channel, and bass and treble settings directly from the front panel for effortless customization.
POWER AMP Features:
▪ Full power output supporting 4Ω, 8Ω, 70 V and 100 V
▪ EMG override input, ensuring critical messages are heard clearly
▪ Selectable 120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
▪ Space-saving compact ½ rack design, providing versatility without compromising performance
▪ Remote power OFF (Stand by), enhancing energy efficiency
Compact form factor Half rack, 1U enclosure ensures space-saving installation without compromising performance.
Full power at low and high impedance Supports 70V, 100V, 4Ω, and 8Ω speaker systems, offering versatility in system design.
Remote power Enables remote power ON/OFF functionality via contact closure, enhancing operational convenience.
Bass and treble adjustment Allows fine-tuning of audio output with dedicated bass and treble adjustment controls.
High-pass filter Available 120 Hz high-pass filters to tailor audio output according to application requirements.
Flexible mounting options Offers versatile mounting possibilities including rack mount, side-by-side rack mount, table-top, or undertable mounting, facilitated by included brackets and accessories.
Emergency input Features 100 V and Line In emergency input with level selection, ensuring critical messages are delivered clearly.
