Description

RDL is a USA based company that manufactures a range of wallplates and DANTE devices which are ideal for many PS system designs.

We carry some of the more common items in stock including:

DJ2 and DJ3 with CP-1

The D-J3 is a 1 gang wallplate that has dual RCA sockets designed to take a domestic line level in such as a Mobile phone, Tablet or laptop. The signal is mono summed and connected through a transformer to provide a balanced line output via a Phoenix connector on the back panel. This is an ideal solution for managing stereo unbalanced inputs over a long distance with transformer isolation to avoid hum loops that often arise from laptops.

There is also an XLR input which is wired directly to the rear panel via a Phoenix connector to provide a balanced mic level circuit. The Line and Mic level circuits each have individual outputs.

The D-J3 requires the CP-1 surround and is an ideal solution for schools, clubs and boardrooms.

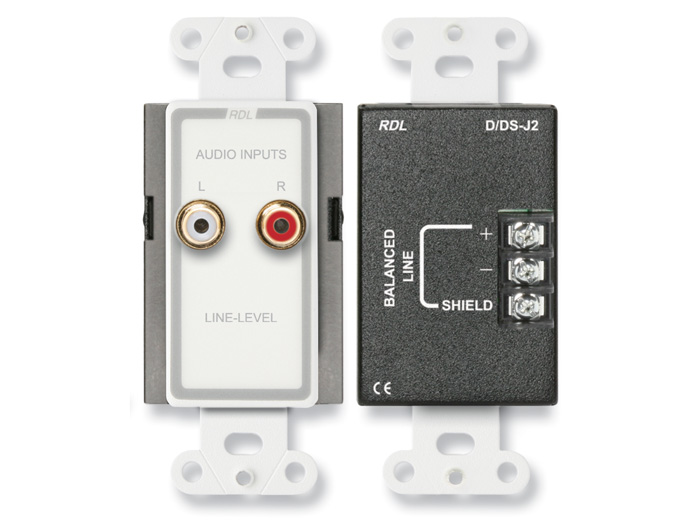

The D-J2 is a 1 gang wallplate that has dual RCA sockets designed to take a domestic line level in such as a Mobile phone, Tablet or laptop. The signal is mono summed and connected through a transformer to provide a balanced line output via a Phoenix connector on the back panel. This is an ideal solution for managing stereo unbalanced inputs over a long distance with transformer isolation to avoid hum loops that often arise from laptops.

The D-J2 requires the CP-1 surround and is an ideal solution for schools, clubs and boardrooms.

D-BT1A/TX-TPR1A

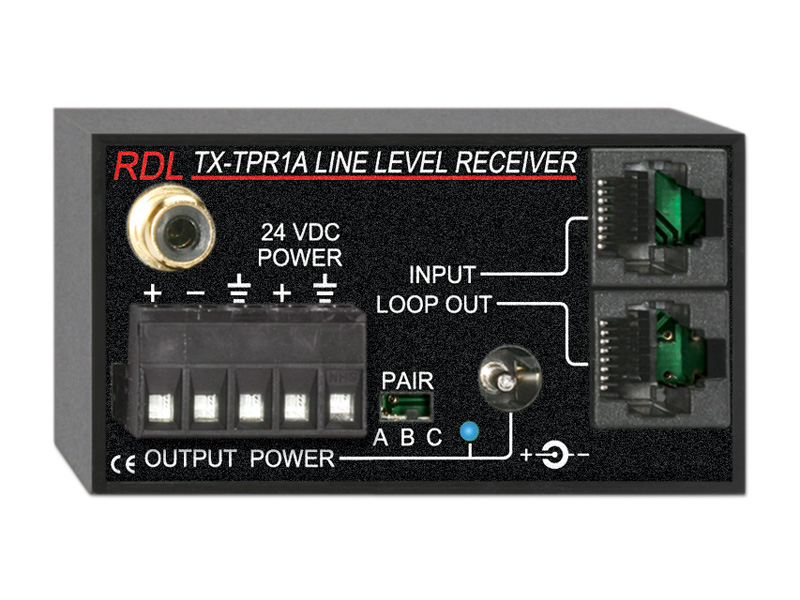

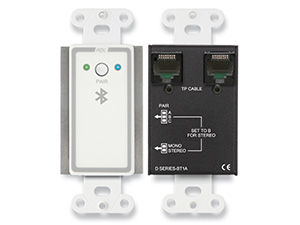

The RDL D-BT1A Wall plate Bluetooth and TX-TPR1A receiver kit is an easy way to add Bluetooth capability to any system, even when the wall plate is some distance away from the mixer input.  The Bluetooth wall plate receiver connects to the active receiver via CAT cabling to deliver a Balanced output. Kit includes D-BT1A, CP-1 cover, 24v PSU and Active single pair receiver.

DD-BTN44

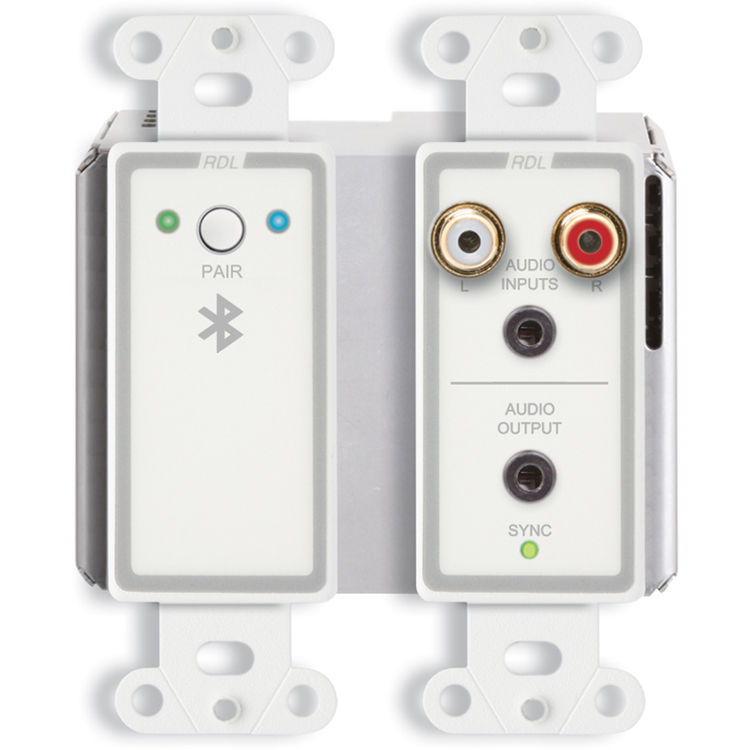

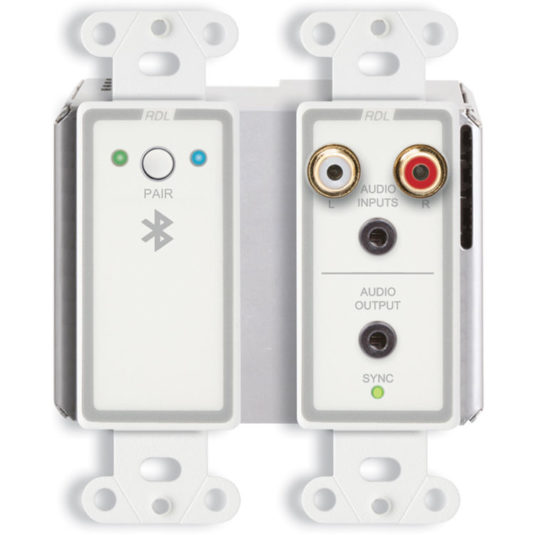

The RDL DDBTN44 -is a wall-plate with dual RCA and 3.5mm inputs plus a Bluetooth Receiver with Dante. Requires cover panel. Ideal for venues that require remote local inputs with a Bluetooth receiver using a DANTE network, such a clubs, rest homes, bars and restaurants.

DD-BN2ML

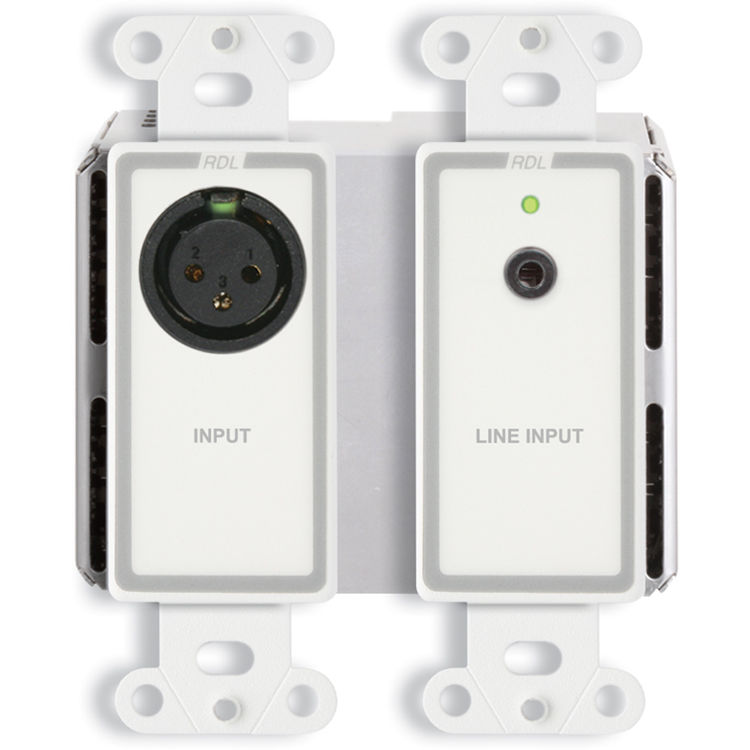

The DD-BN2ML is a complete wall-mounted Dante audio network interface. It features one XLR mic or line input and one mono-summed Mini-jack line input on the front panels, plus two line outputs on a rear-panel detachable terminal block. It provides a a flexible input option for a DANTE networks PA system.

DD-BN31

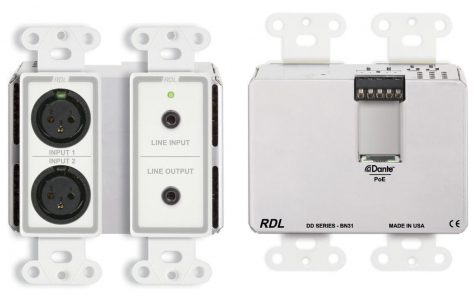

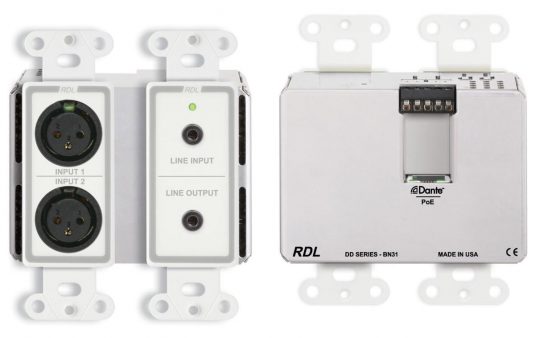

The DD-BN31 is a complete wall-mounted DanteMic/Line audio network interface. Features 2 x XLR mic/line inputs and 1 3.5mm line input and output. Another great option for DANTE enable systems.

AV-XMN4

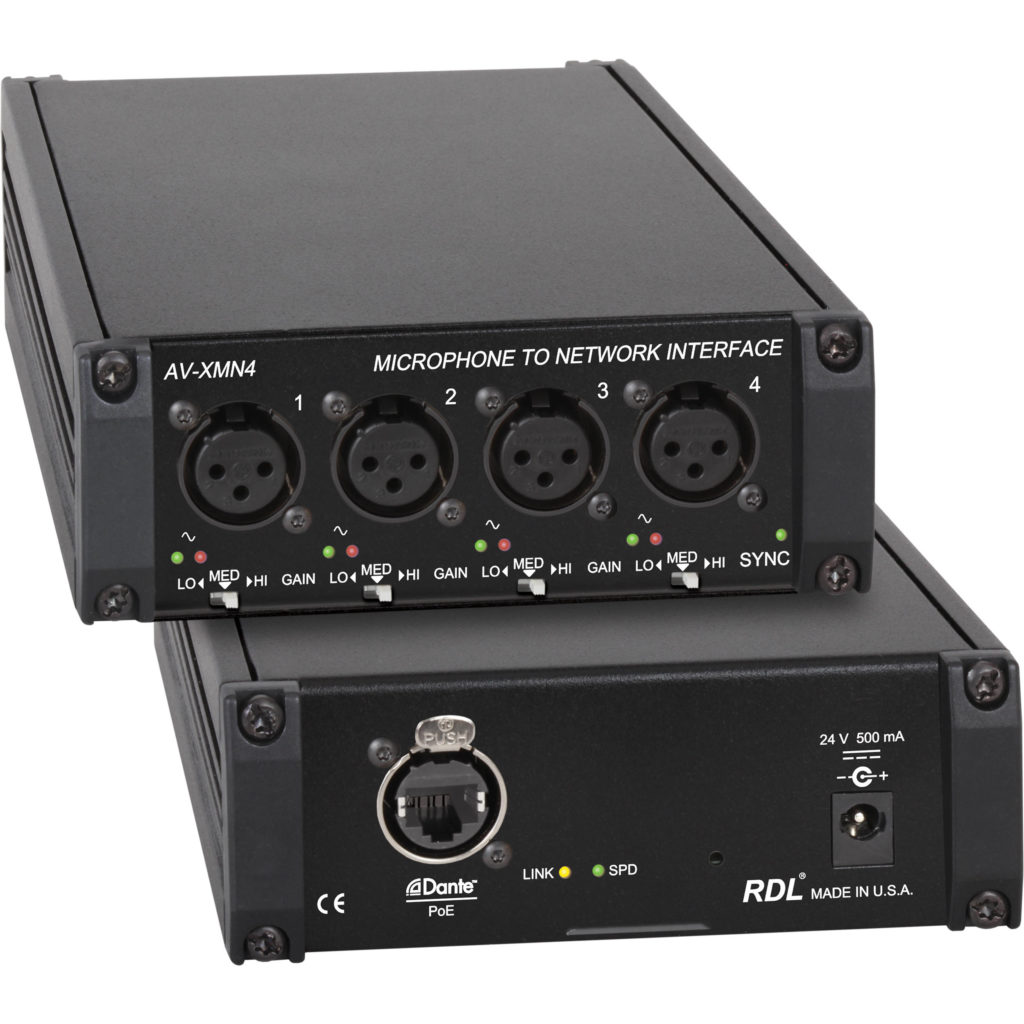

The AV-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input. Can be powered over PoE or external PSU

TX-70A

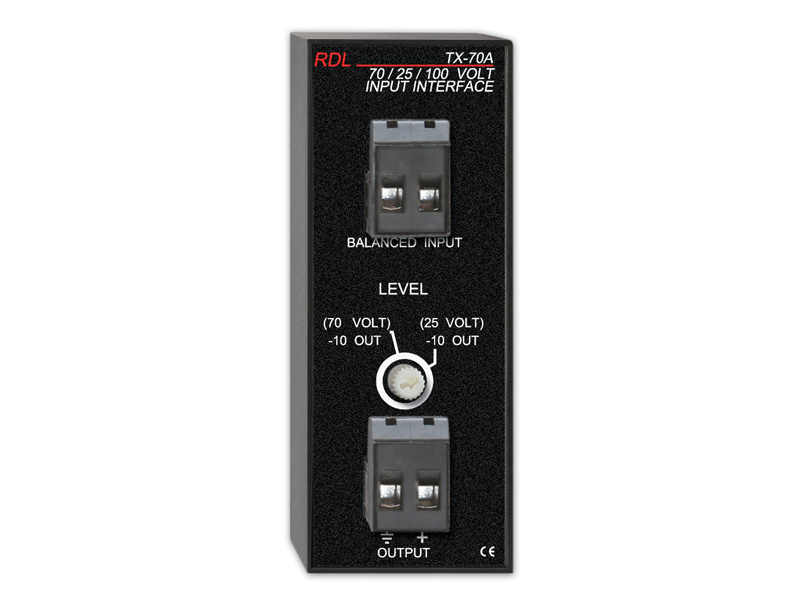

RDL 100v to Line level stepdown transformer – used to take 100v signals to unbalanced line level for use with mixer amps where the only source is an existing 100v speaker circuit.
