Alfatron 4×4 HDMI Matrix, All HDMI inputs and outputs support HDMI with HDR formats, including HDR 10, HLG, DOLBY VISION up to 4K@60 4:4:4, HDCP2.2, 4K-1080P downscaling for each HDMI Output, SPDIF audio output per output, Smart EDID management, supports 3rd party control via RS-232, IR, IP Control.
• 4 HDMI Inputs and 4 HDMI Outputs.
• All HDMI inputs and outputs support HDMI with HDR formats, including HDR 10, HLG
• With built-in 4K-1080P downscaling for each HDMI Output, the matrix can downscale
• 4K@60Hz 4:4:4 to 1080P@60 4:4:4. 4K downscaling works automatically when the matrix is connected to a 1080P display and can be set to ON/OFF by API commands.
• Each HDMI output has a SPDIF audio breakout and supports formats up to 5CH HBR (High Bit Rate) or 2CH PCM audio.
• Supports smart EDID; each input can be assigned to smart EDID mode.
• Supports EDID presets, EDID copy and EDID write. By default, each input EDID is set as 4K@60 4:4:4 HDR with 5.1CH encoded audio.
• Supports audio mute as the four SPDIF outputs can be muted separately by API commands.
• Supports upgrading firmware via both micro-USB and web UI (for MCU and web module).

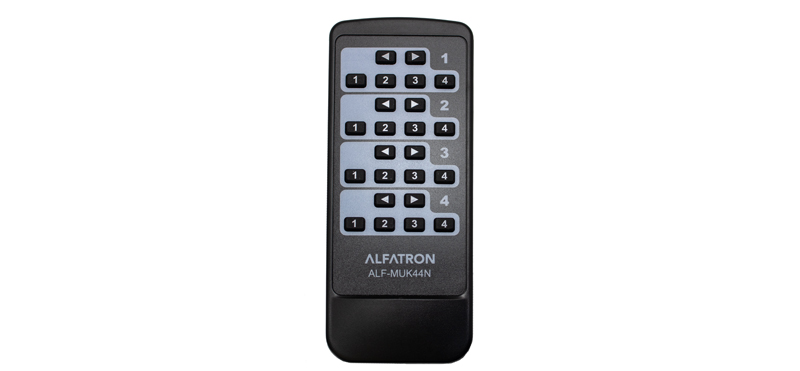

• Rich control options, including RS-232, IR, IP Control and front panel buttons control. Comes with IR remote
7 YEAR WARRANTY Bracket Included
