Description

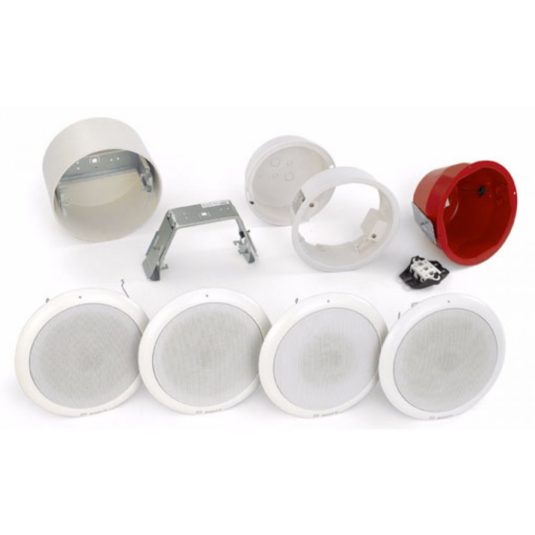

The LC1 Modular Series of ceiling loudspeakers offers a variety of power ratings and mounting options to offer a solution for nearly every scenario.
The range includes 6w, 12w and 24w rated speakers as well as a range of mounting options including flush ceiling mount, surface mount and even a suspension kit as well as a metal fire dome.
Options:

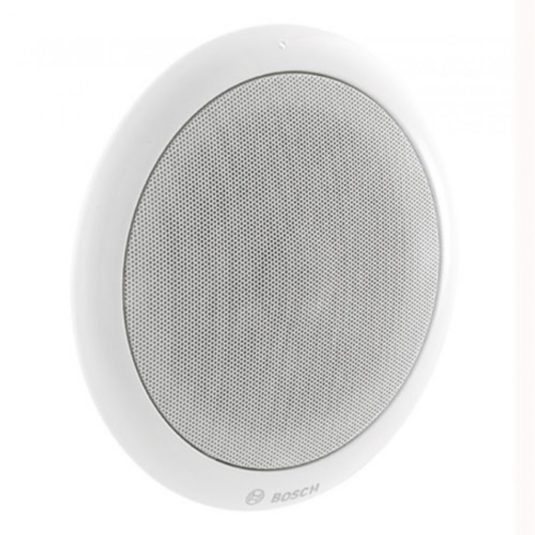

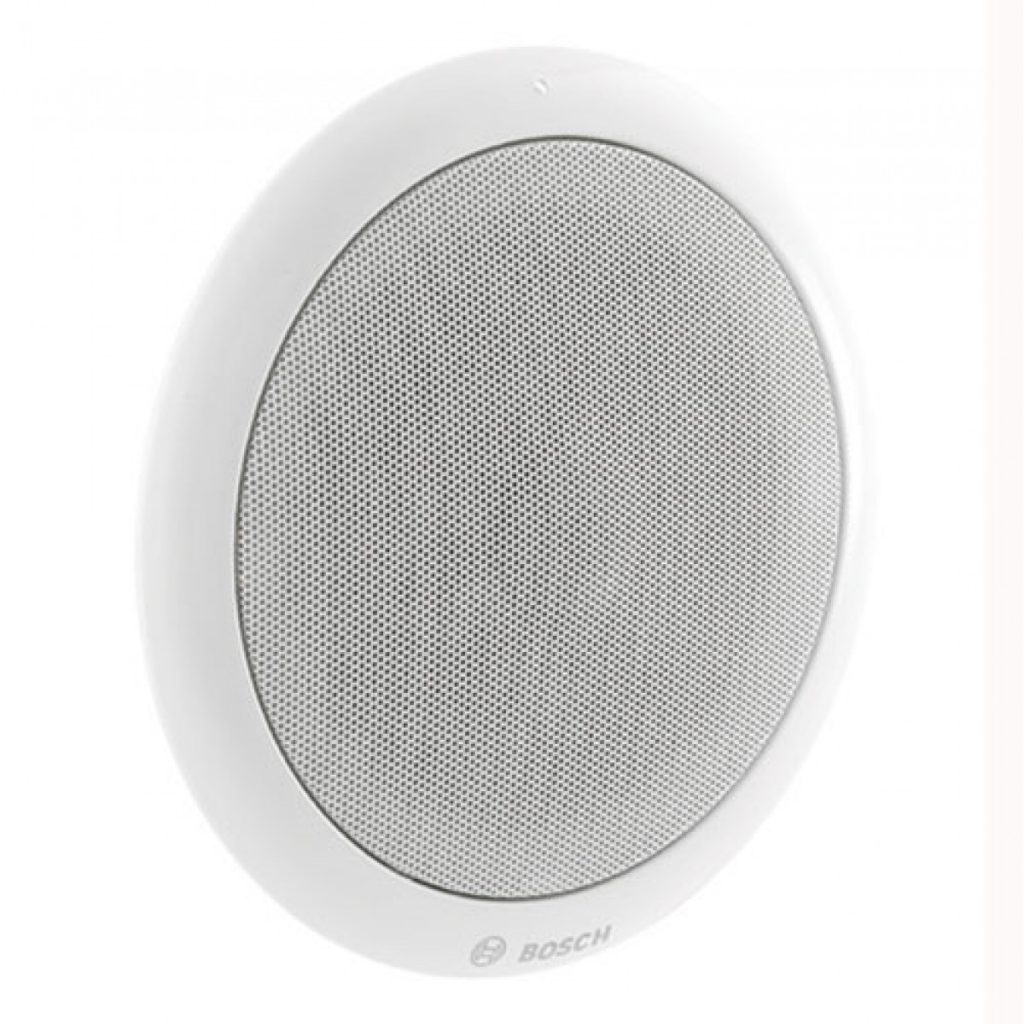

LC1-UM06E8 6W 6″ spring mount steel ceiling speaker with 100V line tx with taps at 6,3,1.5, & 0.75. 89dB SPL 1W/1m, 190mm cut-out, sold individually, requires a bracket option to mount, Colour: White (RAL 9010) EN54-24 Certified
LC1-UM12E8 12W 6″ spring mount steel coaxial ceiling speaker with 100V line tx with taps at 12,6,3,1.5, & 0.75. 89dB SPL 1W/1m, 190mm cut-out, sold individually, requires bracket option to mount, Colour: White (RAL 9010) EN54-24 Certified
LC1-UM24E8 24W 6″ spring mount steel coaxial ceiling speaker with 100V line tx with taps at 12,6,3,1.5, & 0.75. 89dB SPL 1W/1m, 190mm cut-out, sold individually, Colour: White (RAL 9010) EN54-24 Certified

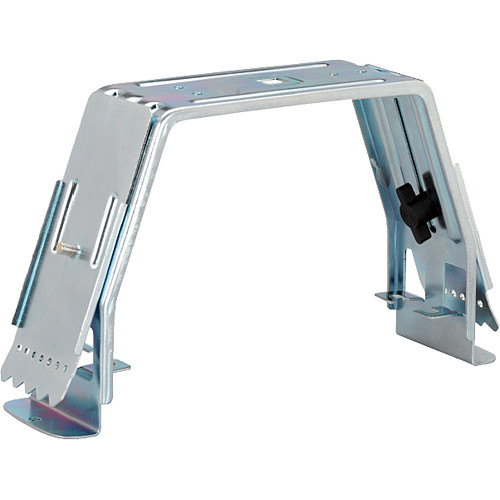

LC1-MMSB Mounting Bracket for all LC1 Range

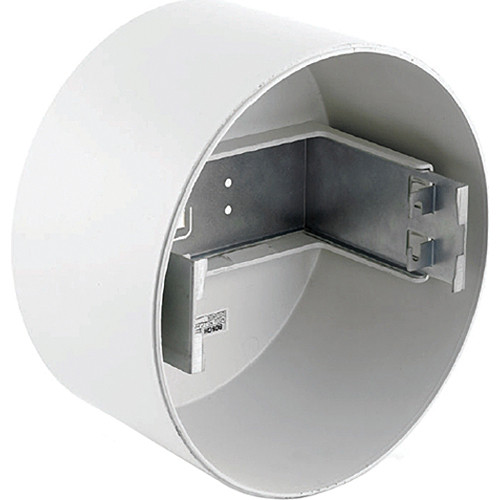

LC1-CSMB Surface Mounting Box for all LC1 Range

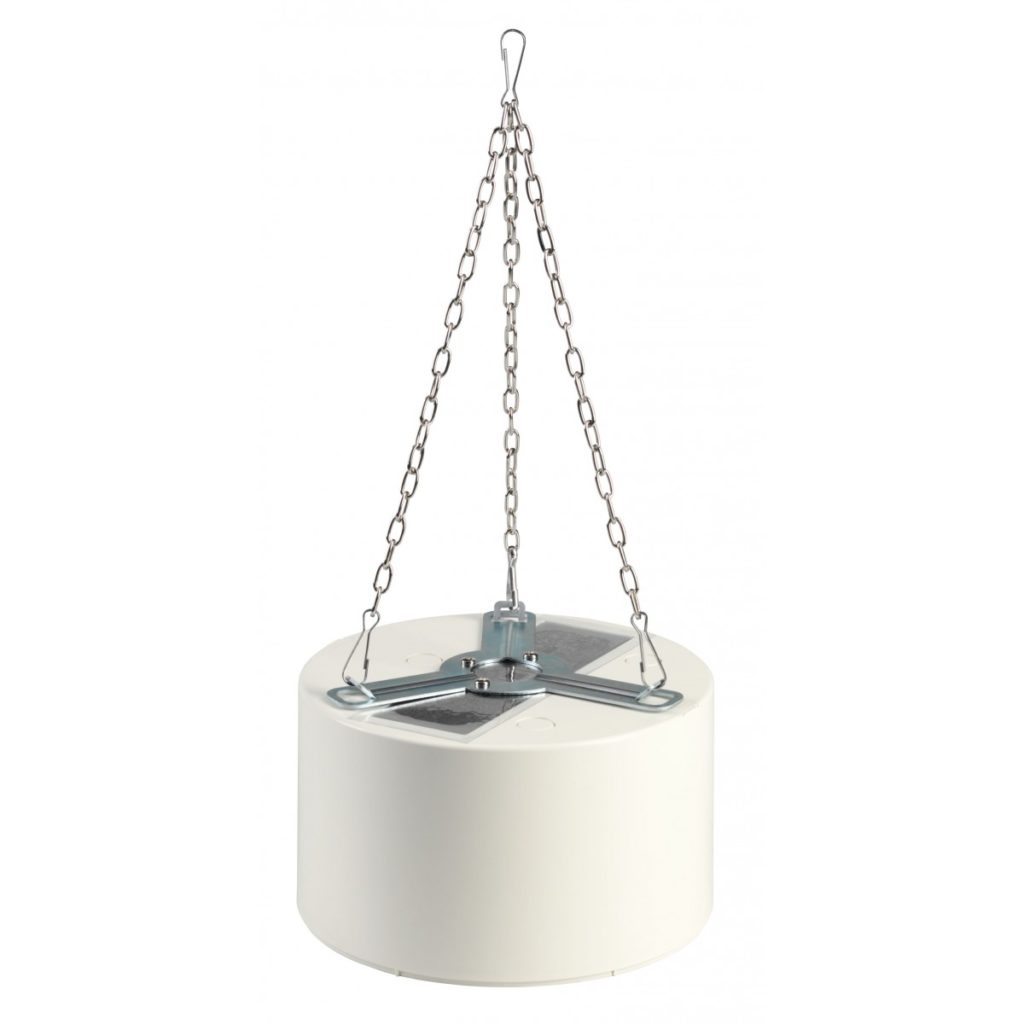

LC1-MSK Metal Suspension Kit to be used in combination with the LC1-CSMB Surface Mount Box

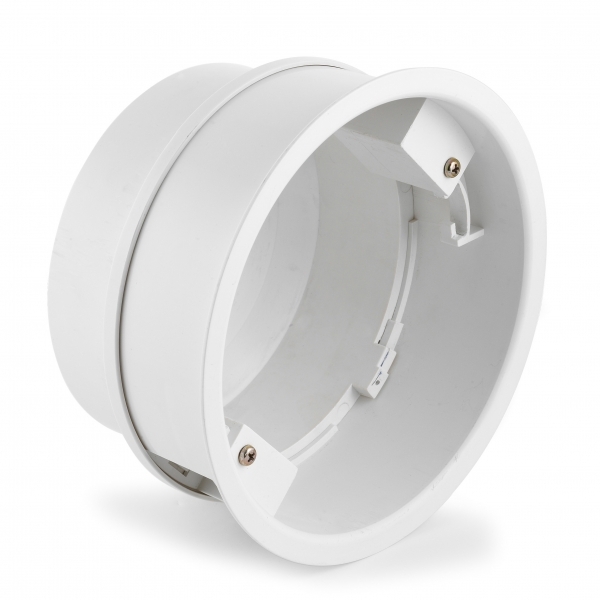

LC1-CBB Back box for all LC1 Range (use in combination with LC1-CMR)
LC1-CMR Ceiling Mount Ring for all LC1 Range
LC1-MFD Metal Fire Dome for all LC1 Range with quick fix termination system
