Description

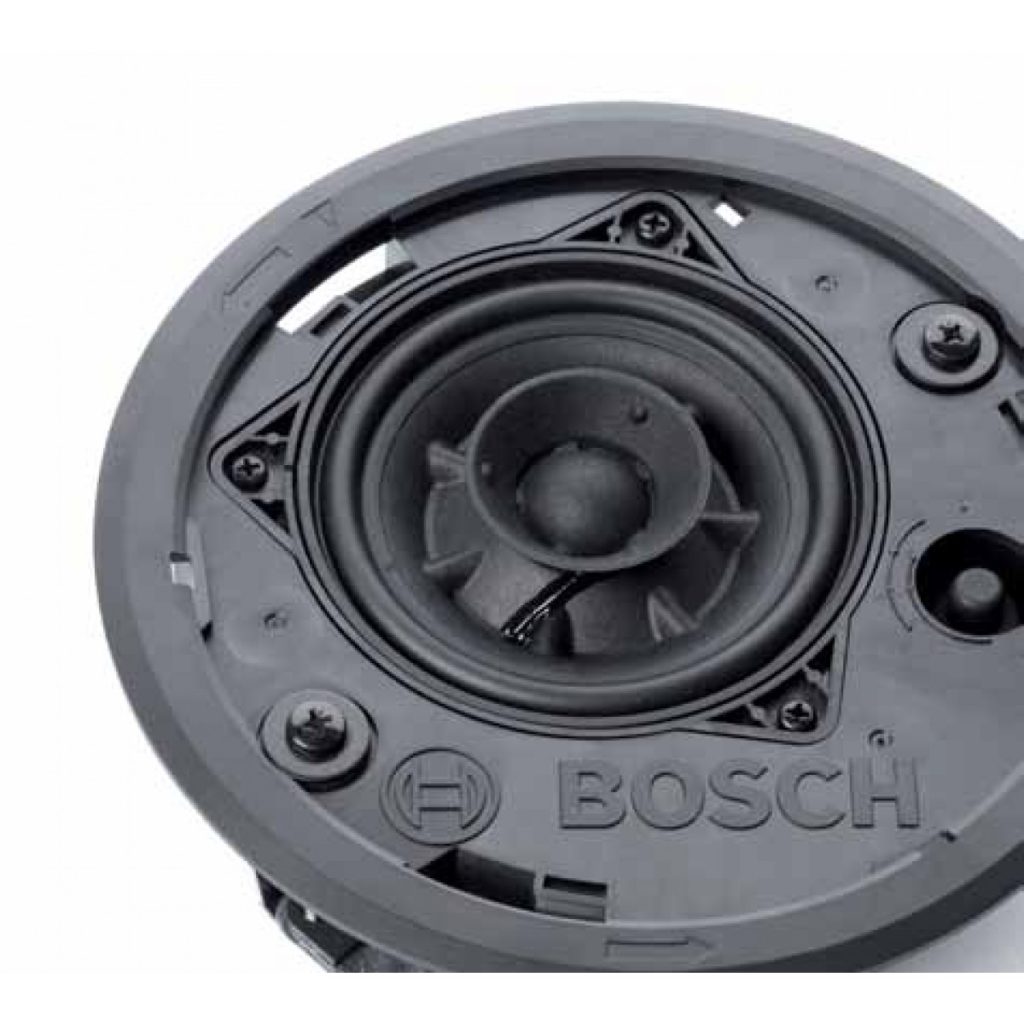

The LC4 Ceiling Loudspeaker Range can be used for a wide variety of ceiling environments. They provide excellent speech and music in indoor public address applications. New CosCone driver technology, used in this range, stands for delivering outstanding sound quality from a small sized unit. It ensures a wide and equal spread of all octave frequencies and eliminates high‑frequency beaming. Fewer loudspeakers are needed to cover a given area, and the noticeable “fading” that can occur as a listener walks from one loudspeaker to another area is eliminated.

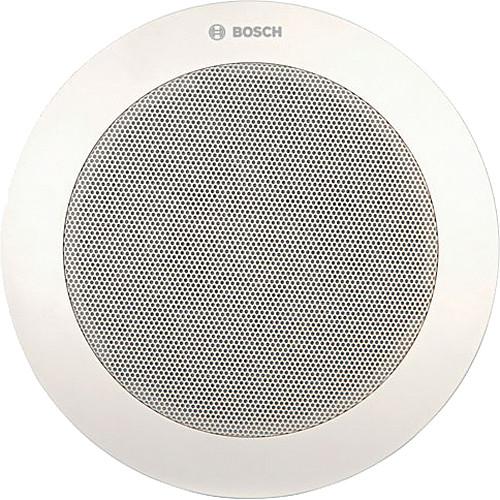

The LC4‑UCxxE ceiling loudspeaker is a light and compact unit with an unobtrusive, neutral designed front grille. The range offers a choice of three loudspeakers distinguished by input power of: 6 W, 12 W and 24 W with the same wide opening angle, ensuring a wide and equal spread of the important frequency octaves for speech intelligibility and music clarity. The LC4 range also includes a back‑box and metal fire‑dome.

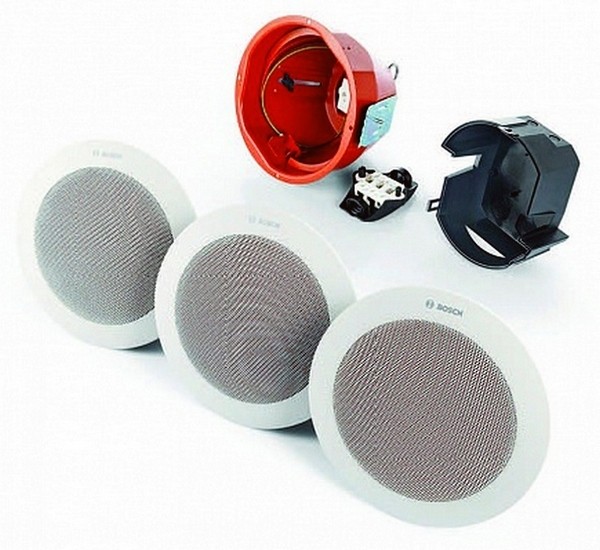

The LC4 Range:

LC4-UC06E
> Clamp mount 4″ 6w CosCone driver technology ceiling speaker
> Bayonet fit grille and front speaker tap access
> 6,3,1.5 & 0.75W, 8 ohm tap
> 87dB SPL 1W/1m 95dB Max
> 162mm cut-out
> Opening angle 1kHz/4kHz = 180/180 degrees
> Grille diameter 200mm
> Colour: White (RAL 9003)

LC4-UC12E
> Clamp mount 4″ 12w CosCone driver technology ceiling speaker
> Bayonet fit grille and front speaker tap access
> 12,6,3 & 1.5W, 8 ohm tap
> 87dB SPL 1W/1m 98dB Max
> 162mm cut-out
> Opening angle 1kHz/4kHz = 180/180 degrees
> Grille diameter 200mm
> Colour: White (RAL 9003)

LC4-UC24E
> Clamp mount 4″ 24w CosCone driver technology ceiling speaker
> Bayonet fit grille and front speaker tap access
> 24,12,6 & 3W, 8 ohm tap
> 87dB SPL 1W/1m 101dB Max
> 162mm cut-out
> Opening angle 1kHz/4kHz = 180/180 degrees
> Grille diameter 200mm
> Colour: White (RAL 9003)

LC4-CBB
> ABS Back Box – dust cover only

LC4-MFD
> Metal Fire Dome
