DENON PRO DN200AZB Bluetooth receiver with 20w amplifier

Denon compact Bluetooth® audio receiver with a built-in 20W RMS, 4-ohm, 100V Class D amplifier. It lets you add an amp with wireless stereo Bluetooth audio reception to any professional audio system. Once you pair your Bluetooth device to DN-200AZB, you can send your device’s audio signal to your loudspeakers, powered by the DN-200AZB.

Description

Denon DN200AZB compact Bluetooth® audio receiver with a built-in 20W RMS, 4-ohm, 100V Class D amplifier. It lets you add an amp with wireless stereo Bluetooth audio reception to any professional audio system. Once you pair your Bluetooth device to DN-200AZB, you can send your device’s audio signal to your loudspeakers, powered by the DN-200AZB.

Key Features:

Bluetooth level control
4 ohm, 70/100V, 20W RMS Amplifier
Euroblock speaker output
Euroblock line input
Utilizes Bluetooth CSR 4.0

Specifications:

Amplifier

Output: 100V/4Ω, 20W RMS, Class D design

Frequency Response: 50 Hz – 23 KHz

Signal-to-Noise Ratio: 90 dB

THD: < 0.1%

Input Impedance: 10 KΩ

Bluetooth

Version: CSR 4.0

Maximum Transmission Power: Class 2, 4 dBm

Transmission Frequency: 2.4 GHz – 2.480 GHz

Transmission Range: Up to 100 feet / 30.5 meters

Receiver Sensitivity: -80 dBm @ 0.1% BER

Supported Profiles: AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.5, Headset Profile (HSP) 1.1

Supported Codec: SBC, MP3, AAC, aptX

Inputs

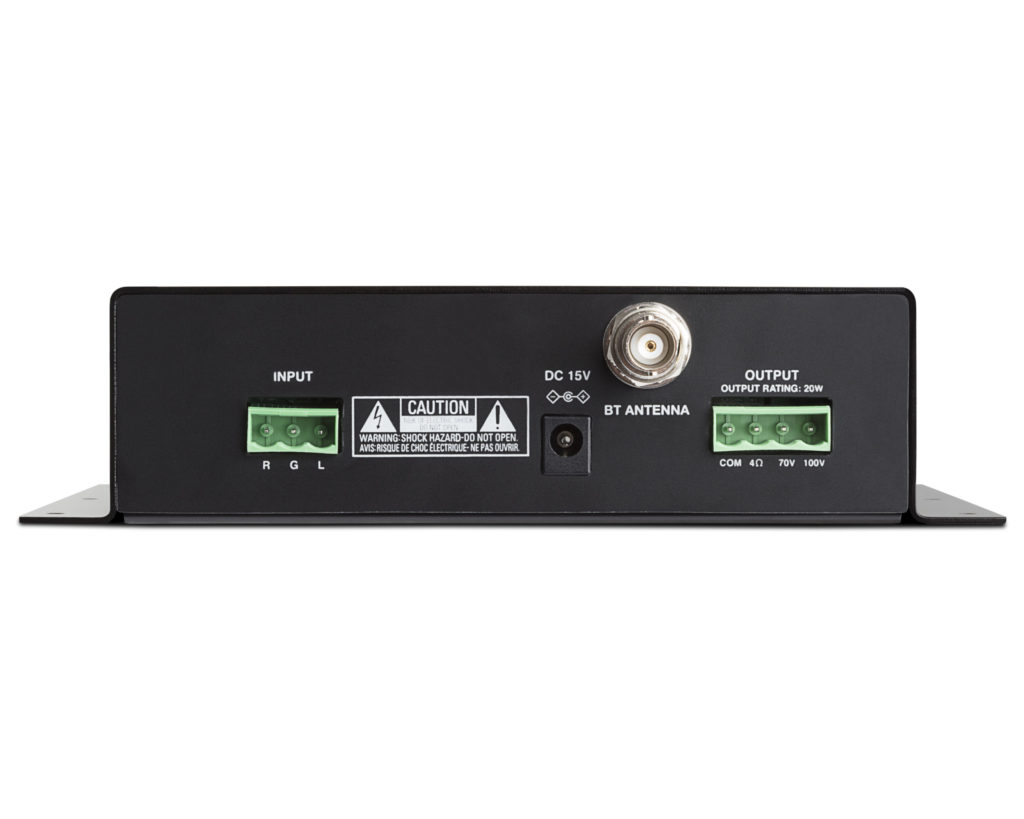

1 x 3-pin Euroblock input (R, G, L), up to 16 AWG

Outputs

1 x 4-pin Euroblock output (Common, 4 Ω, 70 V, 100 V), up to 16 AWG

1 x power adaptor input
