The Archon series of full-range and bi-amped speaker systems have been designed to provide ample bandwidth and high SPL for an accurate sound reproduction in the most various application projects.
The FBT Archon series lines up three 2-way full range/bi-amp models and three 2-way full range compact models; in addition, two low-profile subwoofers (2×8” and 2×15”) increase the low
frequency extension of the desired systems. All Archon speakers are elegantly designed and crafted to meet the most demanding architectural design.
The FBT Archon series has been engineered to fulfill the need of high quality sound in bars, pubs, restaurants, retail shops, clubs, entertainment venues, fitness centres, conference rooms, theatres, educational institutions, houses of worship, museums, exhibition centres, cruise ships, corporate A/V, granting excellent speech intelligibility, wide and precise band coverage, ease of installation thanks to the flexible mounting hardware.
The Archon features are:
•• Stylish architectural cabinet design
•• Acoustically transparent steel grilles with protection cloth
•• High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
•• Baltic birch plywood cabinets available in black or white extra texture paint
•• Choice of different RAL paint colours on order
•• Choice of different paint finish: glossy, matt, textured and more, on order
•• Custom designed low frequency woofers, made in Italy
•• Custom designed high frequency compression drivers, made in Italy
•• Rotatable horns for optimal horizontal or vertical sound dispersion angle
•• Selectable bi-amp/full range crossover network
•• Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
•• Possibility to install line transformers for 100V/70V applications
•• Possibility to order weatherproof versions for outdoor use
•• Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)

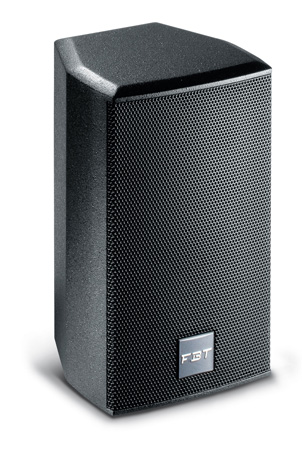

FBT 2-way, 5″ custom woofer, 1″ custom HF driver, 115dB SPL, Baltic birch plywood cab black or white colour. 110° conical dispersion. 200W recomm. amp, 8 ohm 4 x M5.
FBT 2-way, 6″ custom woofer, 1″ custom HF driver, 119dB SPL, Baltic birch plywood cab black or white colour. 100° conical dispersion. 300W recomm. amp, 8 ohm 6 x M5.

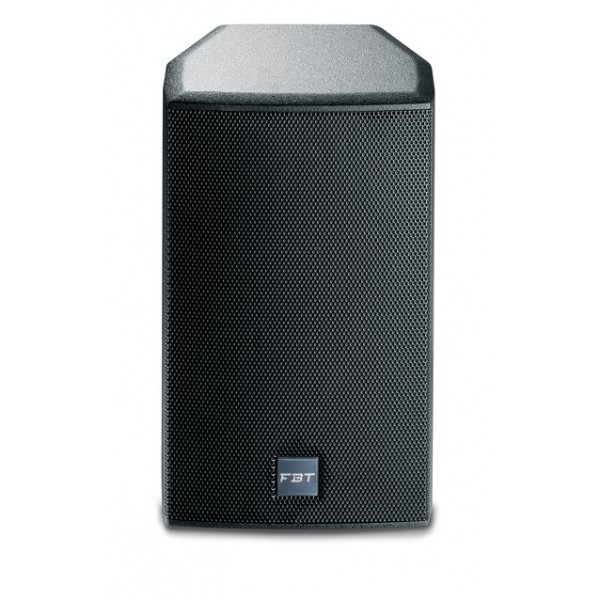

FBT 2-way 8 Ohm, 8″ custom woofer, 1.5″ custom HF driver, 121dB SPL, Baltic birch plywood cab black or white colour. 90° conical dispersion. 350W recomm. amp, 8 x M5.
FBT 2-way, 10″ B&C custom woofer, 1″ B&C custom HF driver, 129dB SPL, 1″ rotatable 80°x 50° Horn, Baltic birch plywood cab black or white colour. 8 ohm 700W recomm amp. 8 x M5
FBT 2-way 12″ B&C custom woofer, 1.4″ B&C custom HF driver, 133dB SPL, 1.4″ rotatable 70°x 50° Horn, Baltic birch plywood cab black or white colour. 8 Ohm, 1000W recomm amp. 12 x M10.
FBT 2-way, 15″ B&C custom woofer, 2″ B&C custom HF driver, 134dB SPL, 2″ rotatable 60°x 40° Horn, Baltic birch plywood cab black or white colour, 8 Ohm, 1000W recomm amp. 12 x M10.

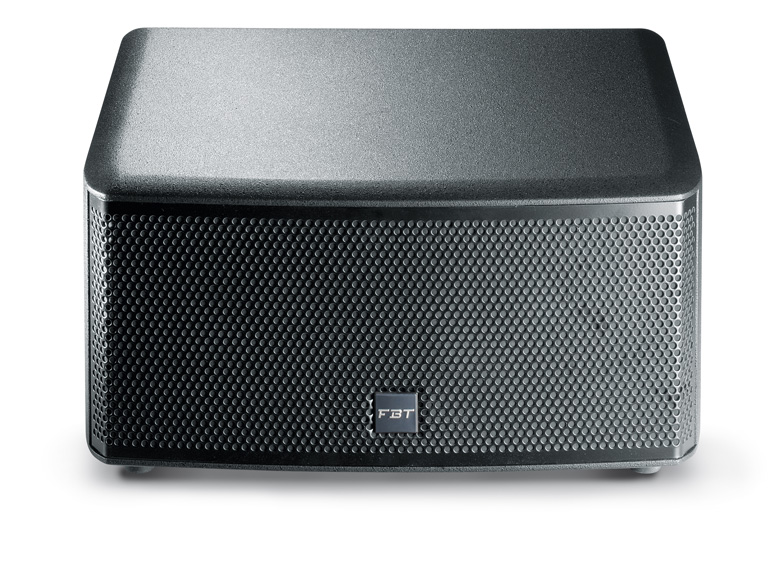

FBT Compact Subwoofer, 2 x 8″ custom woofer, 132dB SPL, Baltic birch plywood cab black or white colour. 8 Ohm, 600W recomm amp
FBT Compact Subwoofer 2 x 15″ custom woofer, 142dB SPL, Baltic birch plywood cab black or white colour. 4 Ohm, 2000W recomm amp
