Description

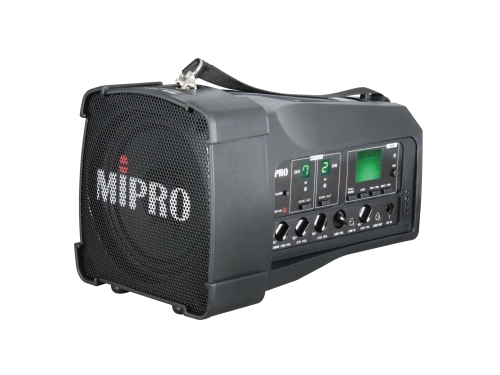

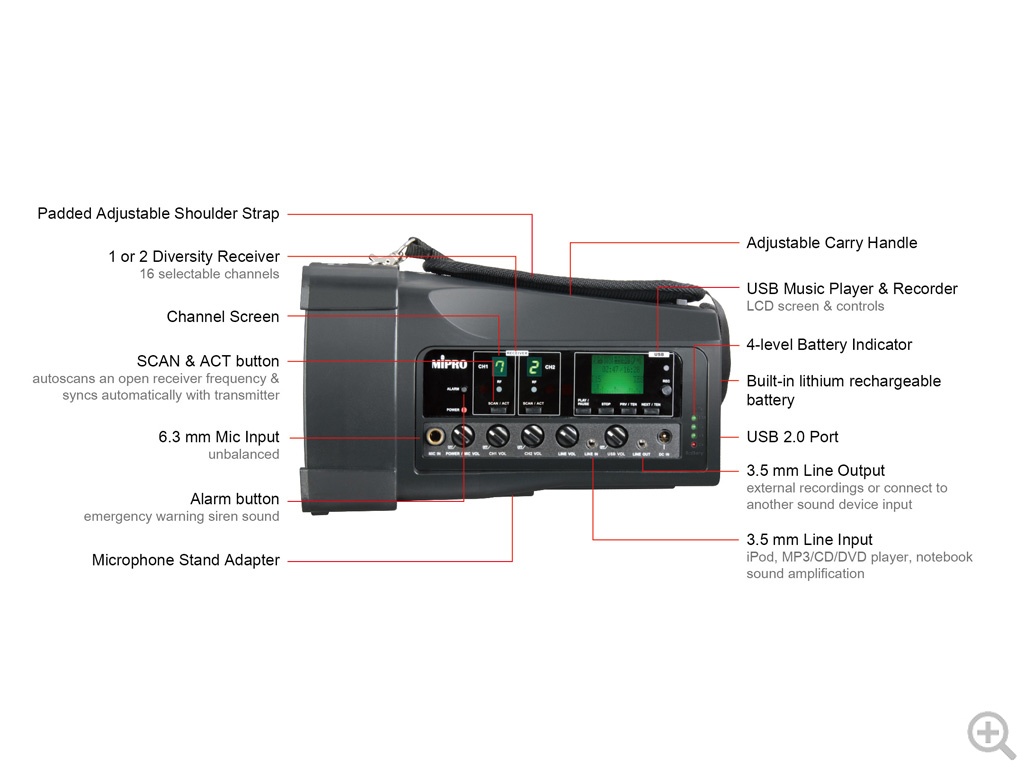

MA-100B is an all new, ultra compact and ultra light wireless PA system. The MA-100 is powerful and offers a vast array of features in an easy-to-use package. It can be easily carried via the padded shoulder strap, built-in handle, or mounted on a microphone stand. It is an excellent public address solution for small crowds.
MA-100SB: Single-Channel

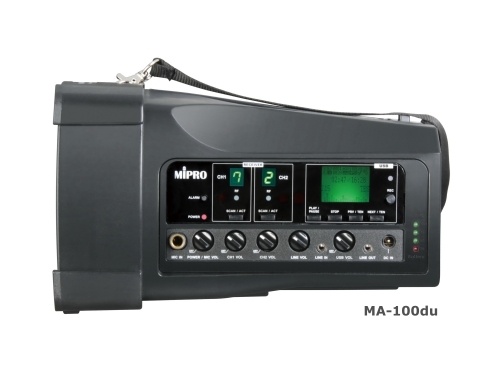

MA-100DB: Dual-Channel
| Portable PA | |||
| Max. Power Output | 50 Watts | ||
| Amplifier | Class D | ||
| Sensitivity | Typical: 90 dB | Maximum: 102 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~ 18 kHz | ||
| Loudspeaker | 5 ” full-range high efficiency | ||
| Audio Inputs | Wired: 6.3 mm (1/4 “) Line-In: 3.5 mm (1/8 “) |
||
| Bluetooth Connectivity | Yes | ||
| Audio Output | 3.5 mm (1/8 “) | ||
| Alarm Siren | Siren sound with fade-in mode | ||
| Installation | Microphone stand, table mounted, shoulder belt. | ||
| Power Supply | AC: External 100 ~ 240V AC switching power supply (Max. Power Consumption: 60 W) DC & Battery: 14.8 V / 2.6 AH rechargeable lithium battery (MB-10×1) |
||
| Charge Time | Up to 4 hours (automatic charging management) | ||
| Standby Time | MA-100SB: Up to 12 hours MA-100DB: Up to 10 hours |
||
| Battery Indicator | 4-level indicator (25/50/75/100%) | ||
| Color | Black or white option | ||
| Dimensions (W×H×D) | 135 × 144 × 240 mm / 5.3 × 5.6 × 9.4 “ | ||
| Weight | MA-100SB: Approx. 1.8 kg / 3.9 lbs (MB-10 battery included) MA-100DB: Approx. 1.9 kg / 4.1 lbs (MB-10 battery included) |
||
| Wireless System | |||
| Receiver Channel | MA-100SB: Single MA-100DB: Dual |
||
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) | ||
| Bandwidth | 24 MHz | ||
| Preset Channels | 16 | ||
| Channel Set-up | Scan & ACT sync | ||
| Antenna | Built-in | ||
| Audio Player | |||
| Built-in USB Port | USB 2.0 | ||
| USB Play & Record | LCD displays track name, number, time, recording status. | ||
| Operation | On-board. USB remote control included. | ||
Ideal applications include:
- School classrooms
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Indoor/outdoor gatherings
- Tour guides & Paging
- Fire fighters, law enforcement, search & rescue squads
- Street performers
- Factory and company tours
