Description

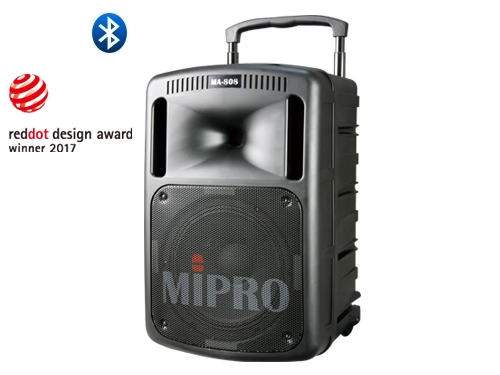

MA-808 is MIPRO’s flagship portable wireless PA system and brings a host of impressive features and functionalities. MA-808 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D/AB amplifiers that drive high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. It offers an ideal public address solution for large crowds.
Features:

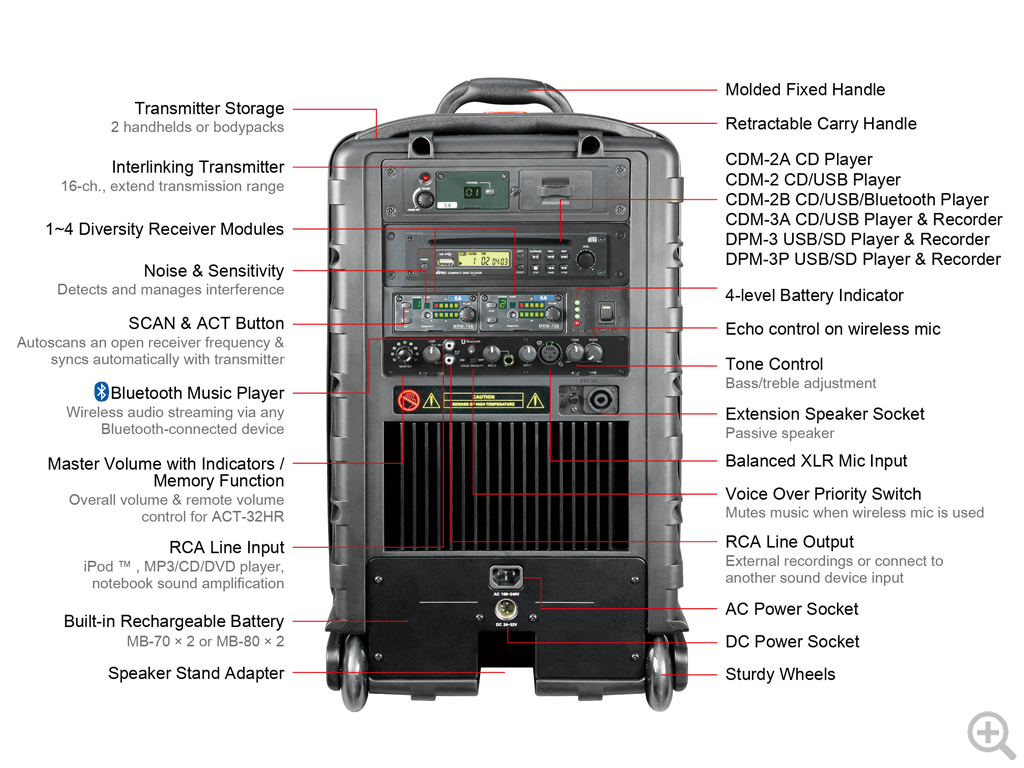

> Robust, rugged enclosure, built-in class D & AB amplifiers system with 10 ” woofer and 1.5 ” tweeter.
> Up to 4 UHF or 2.4 GHz diversity receiver modules with 16 auto-scannable frequencies and built-in active antenna prevents accidental antenna breakage.
> Plug-&-play CD/MP3 player, plus certified Bluetooth receiver for music streaming.
> Voice Priority mutes music when a wireless mic is used.
> Echo effect for richer-sounding vocals.
> Industry’s only Master volume with “Memory” and “Standard” mode options. “Memory” mode saves and recalls last volume level during next power on. “Standard” mode resets to zero level.
> Retractable handle and rugged wheels make it amazingly easy to transport.
> Wirelessly link 2 or more MA-808 systems for more sonic coverage (industry’s only MTM-92 transmitter module is required).
> Active limiter prevents speaker damage from loud signal spikes.
> Can be powered via AC power, battery or direct DC.
> Suitable for tripod, floor or desk mount.
| Portable PA | |||
| Max. Power Output | 267 W: 190W (woofer)｜77W (tweeter) | ||
| Amplifier | Class D & Class AB | ||
| Sensitivity | Typical: 96 dB | Maximum: 111 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~ 18 kHz | ||
| Speaker | Tweeter: 1.5 ” Compression Driver; Woofer: 10 ” Neodyium | ||
| Audio Inputs | Wired: XLR × 1 & 6.3mm (1/4 “) × 1; Wireless: UP to 4 wireless microphones; Audio Player: CDM-2A︱CDM-2︱CDM-2B︱CDM-3A︱DPM-3 | DPM-3P; Line-In: Unbalanced RCA jack |
||
| Bluetooth Connectivity | Yes | ||
| Audio Output | Unbalanced line RCA jack | ||
| Extension Speaker | Speakon output | ||
| Master Volume Control | Manually or Wirelessly via ACT-32HR | ||
| Controls | Tone, Voice Priority & Echo on wireless mics | ||
| Storage | 2 handheld or bodypack transmitters | ||
| Installation | Speaker stand, flat surface or retractable handle & wheels | ||
| Power Supply | AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 352 W) DC & Battery: 24 ~ 32 V DC, 12 V / 4.5 AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2 |
||
| Charge Time | Up to 8 hours (automatic charging management) | ||
| Stand-by Time | Up to 6 hours | ||
| Battery Indicator | 4-level Indicator (25|50|75|100%) | ||
| Color | Black | ||
| Dimensions (W × H × D) | 360 × 560 × 350 mm / 14.2 × 22 × 13.8 “ | ||
| Weight | Approx. 20.5 kg / 45 lbs (MB-70 batteries included) | ||
| Wireless System (optional) | |||
| Receiver | 1 or 2 MRM-70B︱MRM-70W︱MRM-80︱MRM-24 Scan & ACT sync | ||
| Max. Receiver | Up to 4 | ||
| Frequency Range | MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) MRM-24: 2.4 GHz |
||
| Preset Channels & Bandwidth | See Accessories – Receiver Modules | ||
| Installation | Plug-in Module | ||
| Antenna | Built-in | ||
| Audio Player (optional) | |||
| Model | CDM-2A | CDM-2 | CDM-2B | CDM-3A | DPM-3 | DPM-3P | ||
| Installation | Plug-in Module | ||
Ideal applications include:
School sports events and marching bands
Places of worship
Large meetings and public gatherings
Presentations, seminars and meetings
Shopping centre presentations and promotions
Aerobic & fitness centres
Parades & fetes
Street performers
Park and recreational facilities
Emergency and rescue situations
Weddings & funeral services
Public auctions
