Description

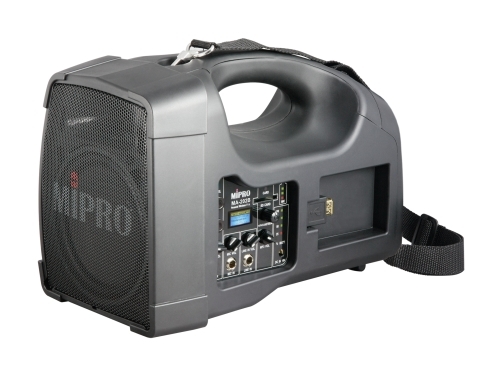

MA-202 is the flagship of personal wireless PA systems. This powerful system boasts versatile feature such as built-in convenient storage compartment and battery charger for ACT-202T handheld transmitter microphone. Lightweight, robust and battery operated, it is an ideal public address solution for small to medium crowds.
|
Portable PA |
|
|
Max. Power Output |
56 Watts |
| Amplifier | Class D |
| Sensitivity | Typical: 96 dB | Maximum: 105 dB |
| T.H.D. | < 1% |
| Frequency Response | 50 Hz ~ 18 kHz |
| Loudspeaker | 1 ” tweeter and 5 ” woofer |
| Audio Inputs | Wired: 6.3 mm (1/4 “)
Wireless: Single-channel Digital Player: USB 2.0 and SD Card Reader |
| Volume Control | Wired, Wireless, Line-in & Digital Player |
| Installation | Microphone stand, table mounted, shoulder belt. |
| Power Supply | AC: External 100 ~ 240 V AC switching power supply DC & Battery: 14.8 V / 2.6 AH rechargeable lithium battery (MB-25) |
| Charge Time | Up to 4 hours |
| Standby Time | Up to 8 hours |
| Battery Indicator | 4-level (25/50/75/100%) |
| Color | Black |
| Dimensions (W × H × D) | 163 × 206 × 306 mm / 6.4 x 8.1 x 12 “ |
| Weight | Approx. 3.1 kg / 6.8 lbs (battery included) |
|
Wireless System |
|
|
Receiver |
Single-channel with SCAN and ACT Sync |
|
Frequency Range |
UHF 480 ~ 934 MHz |
| Bandwidth | 24 MHz |
| Preset Channels | 16 |
| Antenna | Built-in |
|
Digital Audio Player |
|
|
Player |
Built-in USB 2.0 port and SD Card reader |
|
Patents & Approvals |
Patented. Telecom and safety regulations approved. |
Ideal applications include:
- School classrooms
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Tour guides & Paging
- Fire fighters, law enforcement, search & rescue
- Street performers
- Factory or company tours
