Description

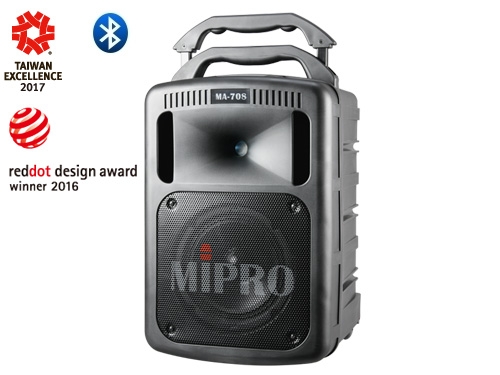

Bringing a host of impressive features and functionalities, the MA-708 is an undisputed market leader in its class. The MA-708 delivers unparalleled audio performance and craftsmanship. The rugged one-piece speaker cabinet houses a high efficient class-D amplifier that drives high sensitivity two-way loudspeakers and limiter circuitry reduces distortion and increases intelligibility for guaranteed powerful and clear sound. It offers an ideal public address solution for medium to large crowds.
Ideal applications include:Schools, Places of worships, Meetings, seminars and presentations, Fitness & aerobics centres, Shopping centre presentations and promotions, Sporting functions, Graveside services & funeral homes, Street/Festival performers, Auctions.

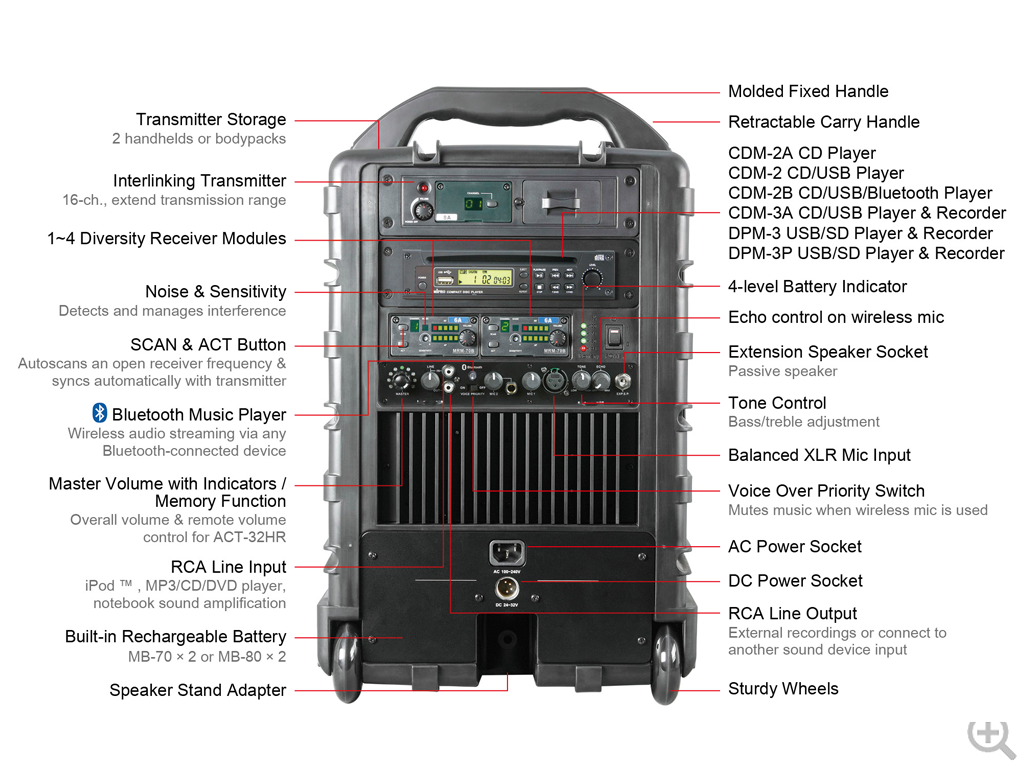

Features:
> Robust, rugged enclosure, built-in class D amplifiers system with 8 ” woofer and 1 ” tweeter.
> Up to 4 UHF or 2.4 GHz diversity receiver modules with 16 auto-scannable frequencies and built-in active antenna prevents accidental antenna breakage.
> Plug-&-play CD/MP3 player, plus certified Bluetooth receiver for music streaming.
> Voice Priority mutes music when a wireless mic is used.
> Echo effect for richer-sounding vocals.
> Retractable handle and rugged wheels make it amazingly easy to transport.
> Wirelessly link 2 or more MA-708 systems for more sonic coverage (industry’s only MTM-92 transmitter module is required).
> Active limiter prevents speaker damage from loud signal spikes.
> Can be powered via AC power, battery or direct DC.
> Weighs only 16 kgs fully loaded.
| Portable PA | |||
| Max. Power Output | 190 W | ||
| Amplifier | Class D | ||
| Sensitivity | Typical: 89 dB | Maximum: 108 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~ 18 kHz | ||
| Speaker | Tweeter: 1 ” Compression Driver; Bass: 8 ” Woofer | ||
| Coverage | H 80° × V 60° | ||
| Audio Inputs | Wired: XLR × 1 & 6.3 mm (1/4 “) × 1; Wireless: UP to 4 wireless microphones Line-In: Unbalanced RCA jack |
||
| Bluetooth Connectivity | Yes | ||
| Audio Output | Unbalanced line RCA jack | ||
| Extension Speaker | 6.3 mm (1/4 “) Phone jack | ||
| Master Volume Control | Manually or Wirelessly via ACT-32HR | ||
| Controls | Tone, Voice Priority & Echo on wireless mics | ||
| Storage | 2 handheld or bodypack transmitters | ||
| Installation | Speaker stand, flat surface or retractable handle & wheels | ||
| Power Supply | AC: Built-in 100 ~ 240 V AC switching power supply (Max. Power Consumption: 220 W) DC & Battery: 24 ~ 32 V DC, 12 V / 4.5 AH rechargeable gel cell battery (MB-70 × 2) or optional MB-80 × 2 |
||
| Charge Time | Up to 8 hours (automatic charging management) | ||
| Standby Time | Up to 7 hours | ||
| Battery Indicator | 4-level indicator (25|50|75|100%) | ||
| Color | Black or white option | ||
| Dimensions (W × H × D) | 336 × 545 × 325 mm | 13.2 × 21.5 × 12.8 “ | ||
| Weight | Approx. 16.3 kg | 36 lbs (MB-70 batteries included) | ||
| Wireless System (optional) | |||
| Receiver | 1 or 2 MRM-70B︱MRM-70W︱MRM-80︱MRM-24 Scan & ACT sync | ||
| Max. Receiver | Up to 4 | ||
| Frequency Range | MRM-70B︱MRM-70W︱MRM-80: UHF 480 ~ 934 MHz (country dependent) MRM-24: 2.4 GHz |
||
| Preset Channels & Bandwidth | See Accessories – Receiver Modules | ||
| Installation | Plug-in Module | ||
| Antenna | Built-in | ||
| Audio Player (optional) | |||
| Model | CDM-2A | CDM-2 | CDM-2B | CDM-3A | DPM-3 | DPM-3P | ||
| Installation | Plug-in Module | ||
Ideal applications include:
School sports events and marching bands
Places of worship
Large meetings and public gatherings
Presentations, seminars and meetings
Shopping centre presentations and promotions
Aerobic & fitness centres
Parades & fetes
Street performers
Park and recreational facilities
Emergency and rescue situations
Weddings & funeral services
Public auctions
