Description

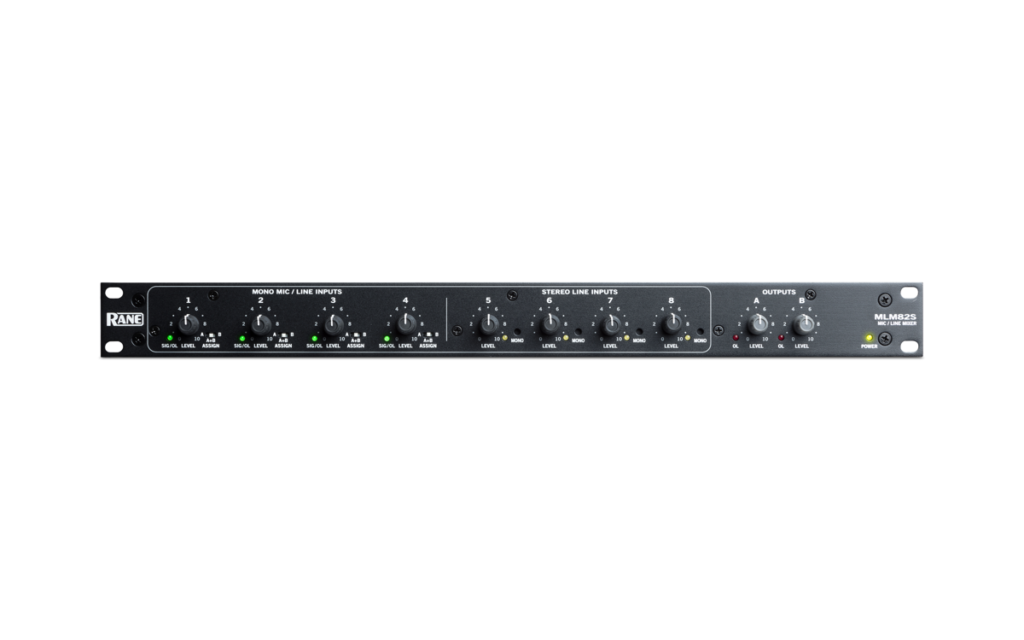

The MLM82S features four balanced, studio grade, Mono Mic/Line Inputs with XLR jacks and 15V DC phantom power. Each of the four Mic/Line Inputs may be assigned to the A, the A+B or the B Outputs. Independent Level/Gain Trim controls and Signal/Overload indicators are provided for each Mic/Line Input. The MLM82S also features four stereo line level inputs with 12 dB of line gain. Each Stereo Line Input features a recessed Mono switch with indicator and Level control. A and B Output Level controls set the master mix level independently for A and B Outputs. The mix
amplifiers feature independent overload indicators. To correct any overload condition, the entire mix can be reduced and/or individual Input Levels adjusted. A and B mix Outputs each have an internal switch for padding the output signal to Mic level. With features like Mic-Line A / A+B / B Assign switches, independent Stereo Line Input Mono switches and additional line gain, the MLM82S is one of the most versatile mixers in its class. It is ideal for installations requiring ease of use, compact size, low cost, high performance and security. Applications include, but not limited to, hotels, conference rooms, schools and rental sound systems.

Features
• Four balanced Mic/Line Inputs (XLR) with:
• 15V phantom power
• Bi-colour signal present/overload indicators
• Trimless mic stage preamplifiers
• A/A+B/B Assign Switch
• Four Balanced Stereo Line Inputs (1/4” TRS) with:
• Independent Mono switch
• 12 dB of line gain
• Two Balanced Outputs (XLR) with:
• Independent Overload indicators
• Independent Level controls
• Internal pad for Mic level output
