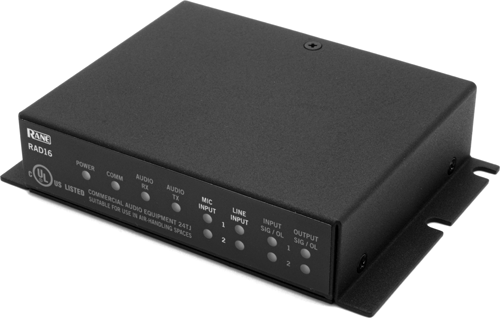

A RAD16z is a Remote Audio Device that is used with the RANE HAL DSP series such as the HAL3s and Terminal 1010x. It provides an alternative to standard wall plates for areas in which a wall plate is impractical. It is connected from the remote location back to the DSP via a home run by shielded CAT cable.

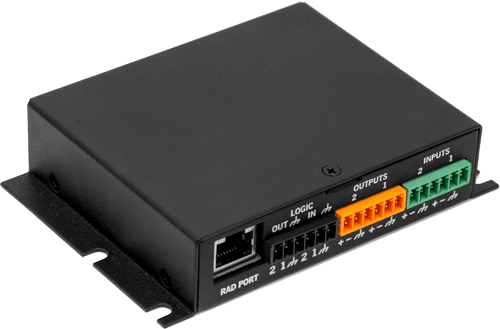

The RAD12z features:
> 2 balanced Mic / Line / Line-Plus inputs
> 2 balanced line outputs on Euroblock connectors.
> Line-Plus allows a stereo unbalanced source to connect to a single balanced input and be mono’ed.
> Inputs are individually software switchable to mic or line
> 24 V phantom power available.
> LEDs indicate Mic or Line level for each input.
> Two Logic Inputs and Outputs.
> Logic Outs are 5 V high or 0 V low max 200mA for relays
