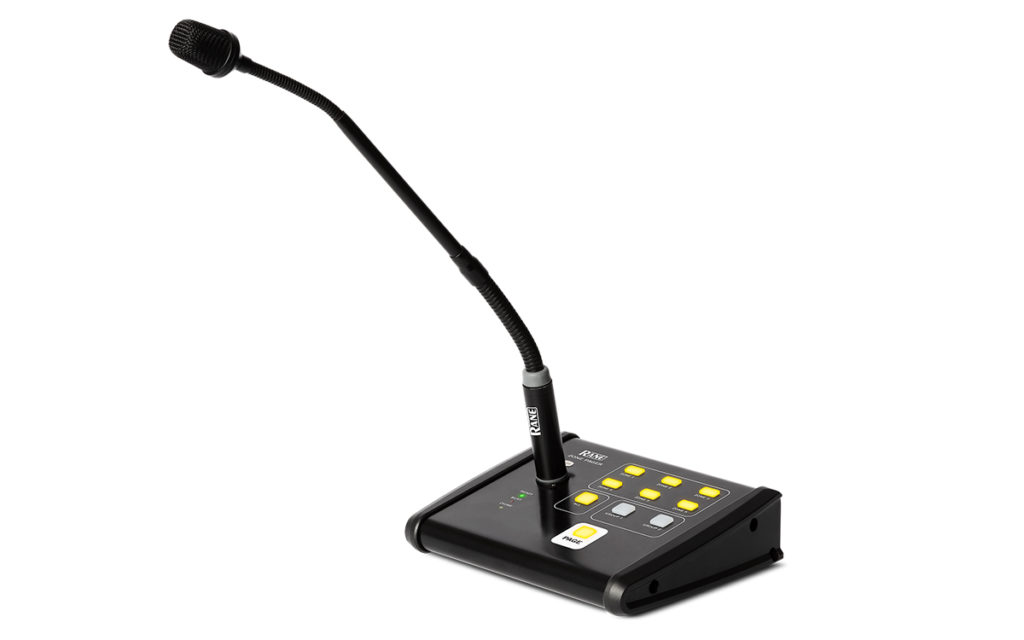

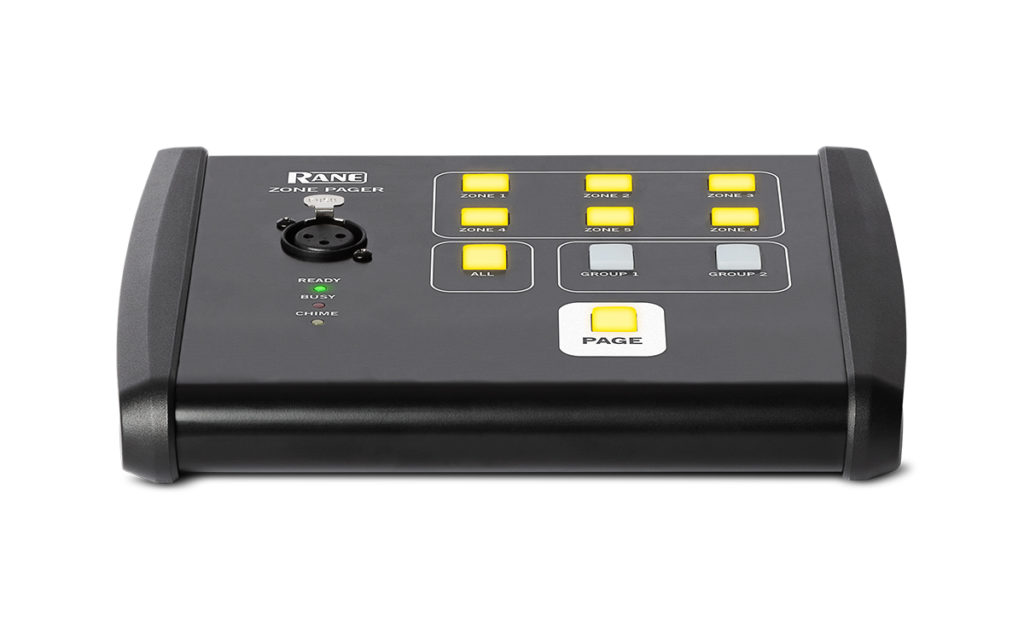

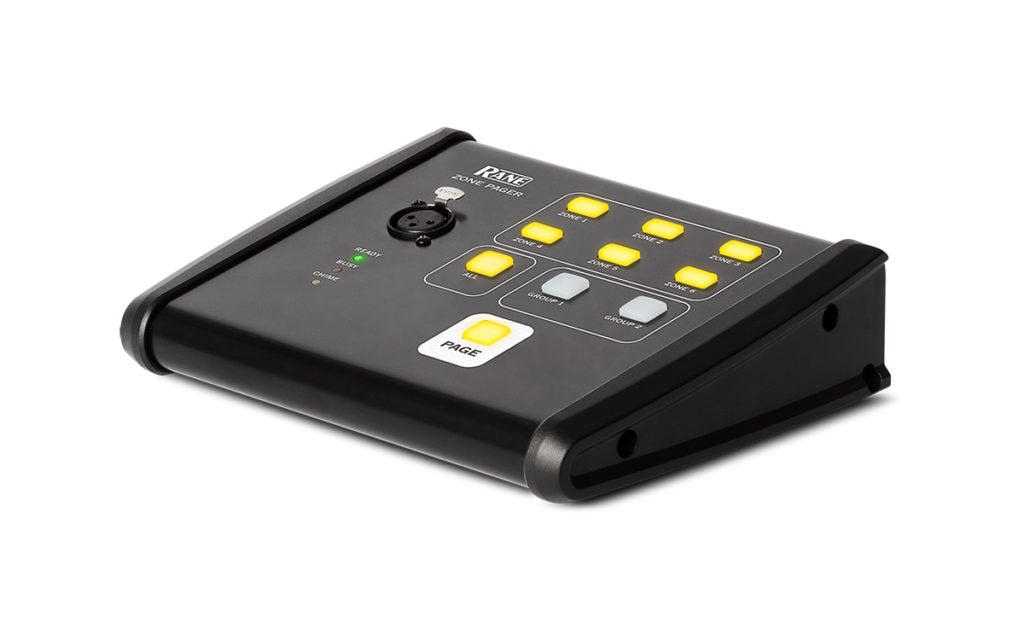

The RANE Zone Pager is a paging station that allows users to page up to (6) zones separately, to (2) groups of zones, and to all zones at the same time when used with the RANE Zonetech or up to 9 Zones or Preset Zone combinations when used with the RANE HAL series processors like the Terminal1010x or the HAL3s. Lights will indicate if the zone is READY or BUSY (already being paged by a higher-priority paging station) and when the chime has completed (if enabled in the Zonetech only).
Zone Pager accepts an included dynamic gooseneck microphone via a 3-pin XLR connector. The microphone input supplies 24V phantom power for condenser microphones. The Zone Pager is connected to a RANE DSP with a Cat5e (or better) cable on a local run up to 300ft (100m) away from the rack.
Zone Pager is perfect for use in bar/lounge restaurants, meeting rooms, schools, house of worship, and smaller venues where multiple paging zones are needed.
– Six-zone smart paging station
– Two programmable group buttons
– Gooseneck dynamic microphone included
– Powered by any Rane DSP commercial processor via RJ-45
– +24V phantom power and 13dB pad
