Description

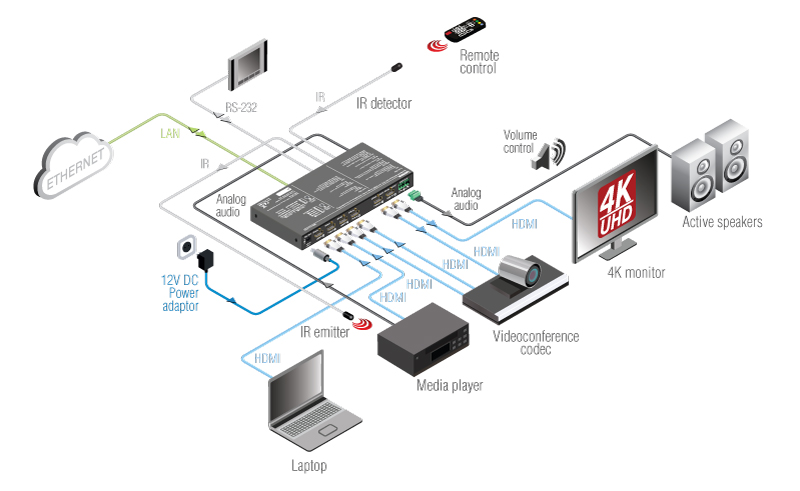

Lightware MMX Series include 4×2 and 8×8 HDMI switchers suitable for a range of commercial installations such as small Theatres, Board Rooms, Bars and Lecture theatres. They include the following features including the built in Events control processor for controlling both the switcher and other third party equipment such as projectors, screens, DVD players, in fact anything with TCP/IP or RS232 and IR control.
FEATURES:-
Cisco VC room integration compatibility
Advanced control feature pack for 3rd party video conference collaboration
1920×1080@120Hz/4:4:4, 4096×2160@30Hz/4:4:4 or 60Hz/4:2:0 maximum resolutions (300MHz)
Audio embedding and de-embedding
Adjustable analogue audio settings (volume, gain, balance)
Frame Detector (analyse detailed video timings)
Compact size
5-pole Phoenix balanced analogue audio connectors
Mounting options for rack, furniture or truss
External universal power adaptor
Twist-and-lock DC power connector
HDCP enable/disable function on input
4×2 HDMI matrix switcher
HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
Multiple TCP/IP connections
Advanced EDID Management
Save and reload full cross point configurations as preset
Intuitive control software for device configuration
Front panel buttons for cross point control
Device control via Ethernet (TCP/IP), RS-232 and USB
Supports HDMI 4K signal formats (4K UHD @30Hz RGB 4:4:4 or @60Hz YUV 4:2:0, up to 9 Gbps)
Command injection on RS-232 and IR ports
Fully non-blocking switching architecture
Built-in Event Manager control automation feature
Supports HDMI 3D signal formats (frame packing, side-by-side and top-bottom)
Pixel Accurate Reclocking
No video compression
HDCP 1.4 compliant
Uncompressed video up to 9 Gbps data rate (300 MHz pixel clock)
Cross compatible with TPS series Lightware extenders and I/O boards (HDBaseT compatible)
Firmware upgrade through Ethernet
Supports all embedded audio formats (including PCM, Dolby Digital and DTS high bitrate audio)
Built-in video test pattern generator
No signal latency, zero frame delay
