Description

The RANE Zone Power Eight is an 8-channel amplifier designed for 100V contractor/install applications and perfect for the distribution of multiple speaker systems over long cable runs, such as in-ceiling speakers, surface-mount speakers and paging horns. It’s the ideal companion to the RANE Terminal1010x and Zonetech DSP.

Features
• 8-Channel Class-D amplifier designed for 100V applications
• 150W per channel
• Euroblock inputs and outputs

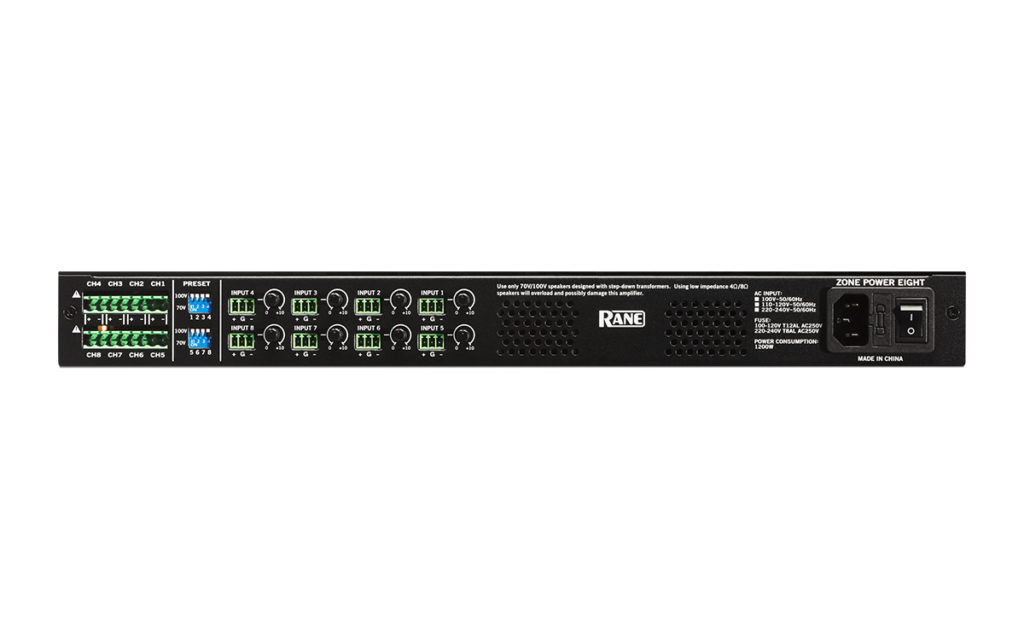

• Separate rear panel gain controls for each channel

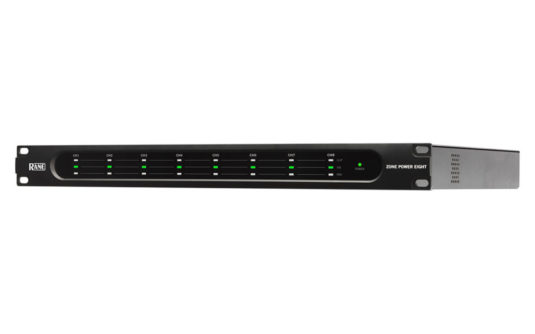

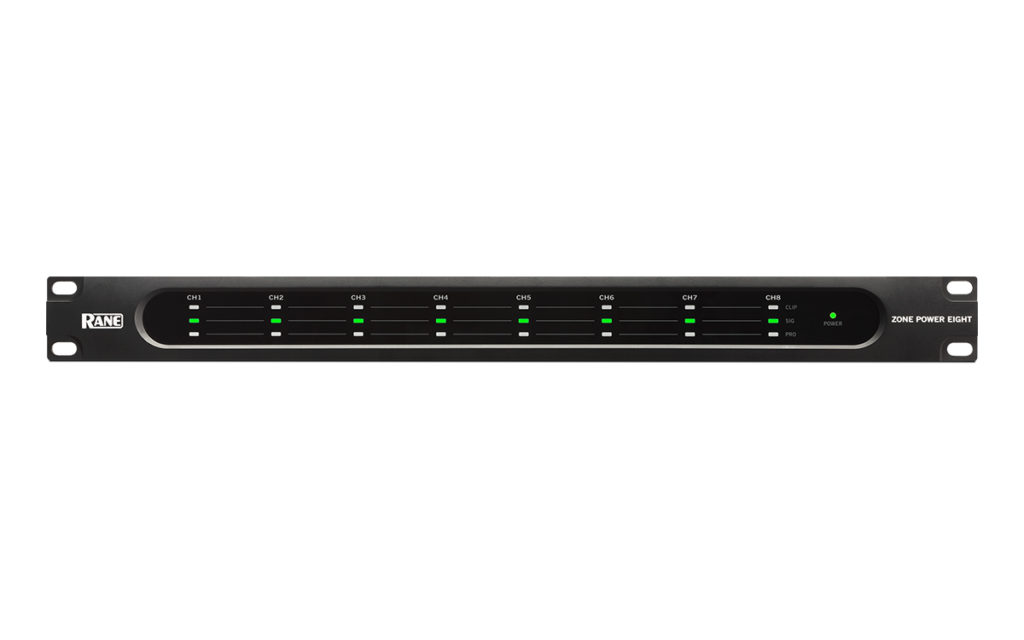

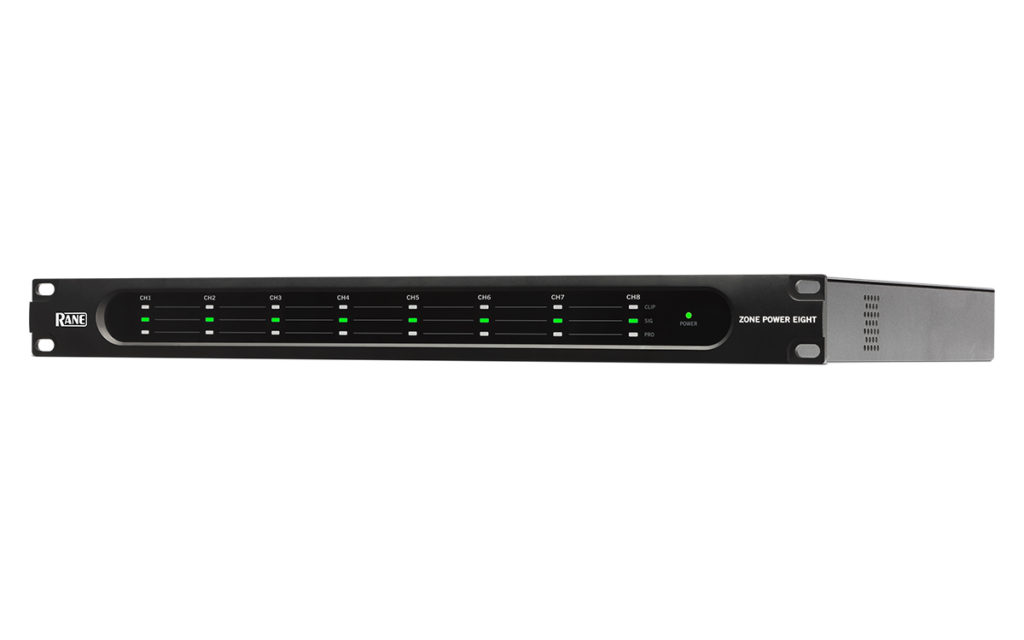

• Signal, clipping and thermal interruption indicators on front panel
• Short-circuit and open-circuit protection

Technical Specifications
Connectors
(8) Euroblock inputs
(8) Euroblock outputs
(1) IEC power cable input

Total Harmonic Distortion < 0.1%

Frequency Response 100 Hz–15 kHz (0 ±3 dB)

Signal-to-Noise Ratio > 95 dB

Channel Separation > 70 dB

Input Sensitivity 0.9–1.1 V (0 ±1 dBv)

Input Impedance 20k Ω balanced or 10k Ω unbalanced

Damping Factor > 200 (1k 8 Ω)

Voltage Gain 40 (±1 dB @ 100 V)

Power Via power cable Connection: IEC

Voltage: 220–240 V, 50 Hz

Consumption: 1200 W (150 W per channel)

Dimensions (width x depth x height) 48.3 x 36.1 x 4.3 cm

Weight 7 kg
